Siemens 6SL3120-2TE21-8AA3 SINAMICS S120 Double Motor Module with 18A Output Current 600V DC Input and DRIVE-CLiQ Interface

Brand Name : Siemens

Model Number : 6SL3120-2TE21-8AA3

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 2-3 days

Product Name : PLC Industrial Control

Part Number : 6SL3120-2TE21-8AA3

Shipment : DHL

Condition : New

Lead Time : 2-3 days

Warranty : 1 year

Keywords : 6SL3120-2TE21-8AA3

Contact Now

Sinamics 6SL3120-2TE21-8AA3 Overview
The 6SL3120-2TE21-8AA3 is a high‑performance double motor module from the Siemens SINAMICS S120 drive system, designed for precise dual‑axis motion control in automation and machinery. It features a compact booksize design, internal air cooling, and optimized pulse patterns for high efficiency and low noise.With 2×18A rated output current and 600V DC input, it delivers stable power for two motors simultaneously. Integrated via DRIVE‑CLiQ, it ensures fast and reliable communication with the control unit. It supports extended Safety Integrated functions and complies with global certifications, making it ideal for machine tools, packaging systems, printing machines, and high‑precision assembly lines.

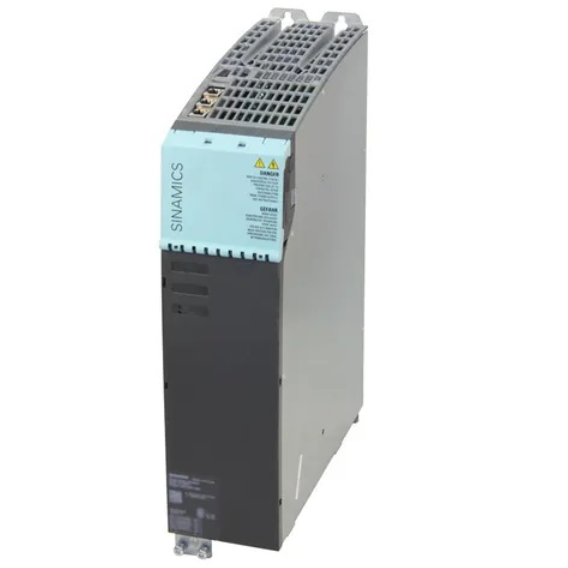

Figure 1 shows the front panel of 6SL3120-2TE21-8AA3.

Siemens 6SL3120-2TE21-8AA3 SINAMICS S120 Double Motor Module with 18A Output Current 600V DC Input and DRIVE-CLiQ Interface













Siemens 6SL3120-2TE21-8AA3 SINAMICS S120 Double Motor Module with 18A Output Current 600V DC Input and DRIVE-CLiQ Interface














Quick Specs.

Table 1 shows the Quick Specs.

Item Specification
Part Number 6SL3120-2TE21-8AA3
Type Double Motor Module
Series SINAMICS S120
Input DC 600V
Output 3AC 400V, 18A/18A
Cooling Internal Air Cooling
Design Booksize
Interface DRIVE‑CLiQ




Detailed Specification
Parameter Value
Order Number 6SL3120-2TE21-8AA3
DC Link Voltage 510–720 V DC
Output Voltage 3-phase 400 V AC
Output Current 2×18 A (continuous)
Mounting Booksize, cabinet mounting
Cooling Method Internal fan cooling
Control Interface DRIVE‑CLiQ
Safety Integrated Extended SI functions supported
Certifications CE, cULus, SIL2, PL d
Ambient Temperature 0–40 °C (without derating)
Weight approx. 6.65 kg


Siemens 6SL3120-2TE21-8AA3 SINAMICS S120 Double Motor Module with 18A Output Current 600V DC Input and DRIVE-CLiQ Interface
Siemens 6SL3120-2TE21-8AA3 SINAMICS S120 Double Motor Module with 18A Output Current 600V DC Input and DRIVE-CLiQ Interface
