Siemens 6AV6545-0DA10-0AX0 MP370 12 HMI Touch Panel 12.1" TFT Industrial Interface

Name: Siemens 6AV65450DA100AX0 MP370 12 HMI Touch Panel 121quot TFT Industrial Interface
Brand: Siemens
Price: 1 USD

Wholesale Siemens 6AV6545-0DA10-0AX0 MP370 12 HMI Touch Panel 12.1" TFT Industrial Interface from china suppliers

Brand Name : Siemens

Model Number : 6AV6 545-0DA10-0AX0 MP 370 12

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 2-3 days

Product Name : PLC Industrial Control

Part Number : 6AV6 545-0DA10-0AX0 MP 370 12

Shipment : DHL

Condition : New

Lead Time : 2-3 days

Warranty : 1 year

Keywords : 6AV6 545-0DA10-0AX0 MP 370 12

Contact Now

Siemens 6AV6 545-0DA10-0AX0 MP 370 12 Overview

The Siemens 6AV6545-0DA10-0AX0 is a high-performance 12.1-inch SIMATIC MP370 Industrial HMI Touch Panel, engineered for mid-to-high level automation control and process visualization. Equipped with a 256-color TFT display (800×600 resolution) and resistive touch input, it delivers intuitive operator interaction and clear real-time process data display for industrial systems.

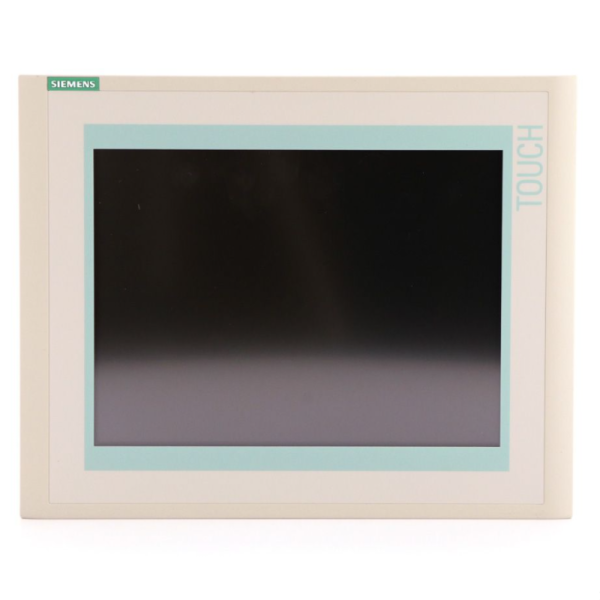

Figure 1 shows the front panel of 6AV6 545-0DA10-0AX0 MP 370 12.

Siemens 6AV6545-0DA10-0AX0 MP370 12 HMI Touch Panel 12.1" TFT Industrial Interface

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Screen Size	12.1" TFT
Resolution	800×600 Pixel
Protection	IP65 (Front), IP20 (Rear)
OS	Windows CE 3.0
Power Consumption	28W (Typ.)

Detailed Specification

Category	Parameter	Specification
Display	Screen Type	12.1" Color TFT
	Resolution	800 (H) × 600 (V) Pixel
	Color Depth	256 Colors
	Brightness	300 cd/m²
Operation	Input Method	Resistive Touch Screen
	Operating System	Windows CE 3.0
	Config Software	ProTool V5.2+SP3, WinCC Flexible
	Runtime Languages	Up to 5
Electrical	Rated Current	1.15 A
	Typical Power Input	28 W
	Supply Voltage	DC 24V
Memory	User Data Memory	7168 KB
	Memory Type	Flash / RAM
Connectivity	Interfaces	MPI/DP/PPI, RS232, RS422/485, Ethernet, USB
Mechanical	Dimensions (W×H×D)	335 × 275 × 59 mm
	Net Weight	4.5 kg (9.80 lbs)
	Mounting Cutout	310 × 248 × 59 mm
Environmental	Operating Temperature	0°C to 50°C
	Protection Rating	IP65 (Front Panel), IP20 (Rear Panel)
Performance	MTBF Backlighting (25°C)	50,000 h
Certification	Compliance	CE Certified
